Resin bound gravel is natural stone, marble, glass or recycled aggregate mixed with a polyurethane resin and trowelled 12mm to 24mm deep into a smooth, porous, SuDS compliant surface for driveways, paths, patios and public areas.
This is a popular choice for many areas and we can customise it to suit each project. Our team have plenty of experience in installing these surfaces for various clients.
What is resin bound gravel?
Resin bound gravel is a porous paving system that is available in a wide range of natural stone aggregates, recycled materials, marble and glass. The stone surfacing specification is created by a process of encapsulating natural gravel, marble, glass, quartz, with a polyurethane resin. This provides a smooth textured, aesthetically pleasing and hard wearing surface that is resistant to cracking.
The system can overlay existing surfaces such as tarmac and concrete however it is also ideal for new build projects. Many people choose this specification for a driveway, path, garden patio or even for large public areas like parks and visitor attractions.
Resin Bound Maintenance
As well as installing the surfacing itself, we can also offer services for maintenance and cleaning of the outdoor paving to keep it in top condition. Because this anti slip specification requires relatively low maintenance, simply brushing and occasionally jet washing the flooring will be enough.
This should keep the pores free from debris and ensure the paving remains clean and drains water efficiently. It’s important to make certain that water can drain through into the ground below. This helps to prevent flooding as it stops the water running into low lying areas.
This specification is a popular choice as it is durable, low maintenance and provides a great looking paving solution for a range of facilities.
What is resin bound used for?
Resin bound is used for driveways, access roads, footpaths, patios, pool surrounds, tree pits and landscape schemes, laid over a macadam or concrete base.
There is a range of different uses for resin bound systems.
We design the layout and colour to suit the site and the budget.
Below are some of the common uses for this product:

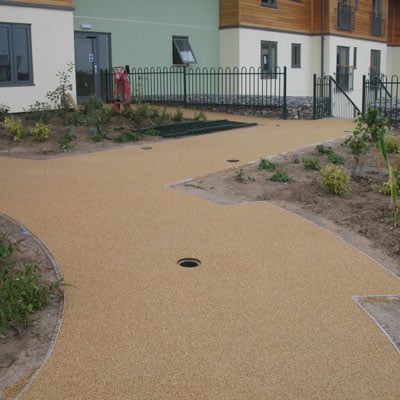

- Driveways
- Access roads
- Landscape schemes
- Footpaths
- Patios
- Pool surrounds
- Tree pits

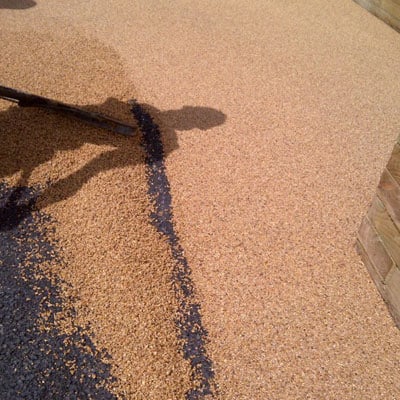

One of the main services that we provide for this particular surface type is the full installation process. This includes laying out the porous surfacing mixture (resin mixed with loose gravel) onto a suitable sub base such as macadam or concrete.
Our installers have a number of different options when it comes to colour and design to suit your individual needs and requirements. We can also install different aggregate size too and the resin bound system is laid at 12mm to 24mm depending on the use.
For more information on our resin products, please get in touch with our team.

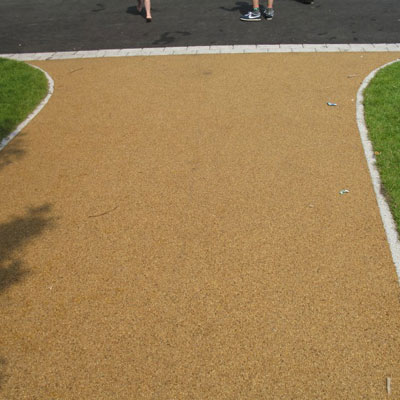

Is resin bound good for driveways?
Yes. Resin bound suits driveways because it is porous and SuDS compliant, comes in a range of colours and is hard-wearing, and it differs from resin bonded, which is a non-porous scatter coat.
Driveways are one of the most popular uses when it comes to a resin bound system.
This is because there is a range of different benefits to using resin bound aggregates. Some advantages of why resin bound is a great choice for driveways include:
- Resin bound is a porous system that is SUDS compliant
- There are a range of resin bound colours
- You can create custom designs
- The surface is highly durable
It is important to remember that a resin bound system is not the same as a resin bonded system, which can also be used on driveways.
Resin bonded surfacing is a non-porous, scatter system (resin is installed and loose stone is scattered onto the surface), whereas resin bound is mixed before installation and the system offers permable qualities. You can find out more about resin bonded surfacing systems here.
| Resin bound | Resin bonded | |
|---|---|---|
| How it is made | Stone mixed with resin, then trowelled | Resin laid first, loose stone scattered on top |
| Depth | 12mm to 24mm | Around 4mm |
| Finish | Smooth | Textured, anti-slip |
| Drainage | Porous, SuDS compliant | Non-porous |
How much does resin bound cost?
Resin bound gravel costs around £60 per square metre installed for a standard specification, and on our own published projects it has ranged from around £40 to £170 per m². The area, the aggregate blend and design, the depth, the base and the location set the price.
With each job, the cost of resin bound services can vary greatly. A number of factors have an effect on how much the overall project will cost. The main variables include the dimensions of the area in question, the design chosen by the client, and the location of the project itself.
These are all things to consider when coming up with a budget for your stone surfacing installation. Always make sure to think about this carefully. We would advise thinking about your budget and how much you have to spend before planning out the project. This will give us a good idea of what type of specification or features would be most cost effective for you.
We would be more than happy to talk to you about prices or other services that we offer in more detail.
What designs and colours can resin bound have?
Resin bound can be laid in a wide range of natural gravel aggregates and colours, every one of them porous, and as a tree pit system that replaces open pits and metal grilles.
A range of natural gravel aggregates can be installed so you can fully customise your outdoor pathway surface or recreational area with a design that fits with the look of any existing flooring or structures.
All of the outdoor resin flooring designs that we install are porous to allow for fast water drainage and SuDS compliance, which suits urban areas as a way to prevent flooding during wet weather. This gravel is low maintenance, durable and very decorative allowing you to create imaginative and exciting environments.
To learn more about SUDS compliant surfaces, please get in touch.
The resin bound stone tree pit system solves the problems of open tree pits and metal tree grills. There are many benefits to installing these resin surfaces as it creates a smooth, continuous layer of natural stone.
This is ideal for pushchairs and wheelchairs, it is self draining so no more puddles when laid over porous sub bases. As well as this it is also oil and stain resistant to maintain its attractive appearance.
We have carried out many installations of natural stone surfacing for commercial and domestic projects in the UK. Our experts would be happy to help you with designs and specifications for your project. Please feel free to get in touch with us through our contact form if you need some advice in regards to our services for installation and maintenance of decorative outdoor paving.
This video shows the installation of a stone pathway surface in London:
Is resin bound better than block paving?
Resin bound usually needs less maintenance than block paving, because weeds cannot grow through it, though it can cost more depending on the existing surface and the area. Both are permeable and decorative.
Overall there are a variety of positives for both surface types; both are permeable and decorative surfaces with their own unique qualities. Although resin bound can be expensive in some cases (depending on your existing surface and the area size) it generally requires less maintenance than block-paving, as weeds cannot grow through the surface.
Both these surface types are a lot more appealing than other surfaces like tarmac. If you would like to find out more regarding these surfacing types, please do not hesitate to contact our team. You can find out about our enquiry process here. We can also offer you more information on the benefits of these surfaces if you require it. We’ll also provide you with a free quotation for resin-bound surfacing if required.
Can resin bound be laid on commercial sites?
Yes. On commercial sites resin bound is usually laid over the existing macadam, for car parks, access roads, schools, walkways and building surrounds.
Installing resin bound stone for commercial projects is quicker and easier than it seems. In most cases, we will be able to lay down pouring gravel that coats any existing macadam you have in place.
Before we even reach this stage, we will work carefully with you to set up a plan of action. We want to make sure we take into account all the necessary dimensions, your likely use for your surfacing, and more besides.
One of the best reasons for using commercial resin bound gravel surfacing is the fact that it’s so versatile in looks and style. You can create a fantastic, colourful surfacing design that fits your brand and image easily.
We can install commercial resin bound gravel in many settings. You might want to resurface a school playground.
Or, you might want to completely renovate your surrounding building and private car park. In any case, we will be more than happy to set you up with a look that’s ideal for your needs.
Here are just a few areas we can cover for you on request:
- Car Parks
- Schools
- Public Attractions
- Access Roads
- Building Surrounds

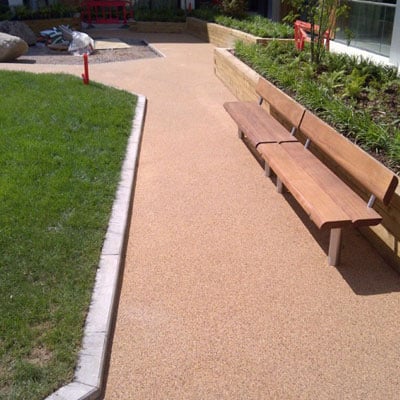

- Parks
- Walkways
Therefore, whether you are running a private business or a public service, there are plenty of solid reasons why resin bound gravel is so beneficial.
How do you get a resin bound quote?
To get a resin bound quote, send us your details, photos of the area and its size. We price from those, so a site visit is usually not needed.
The resin bound enquiry process is pretty simple for our clients. All you need to do is leave your name and contact details in the enquiry form on our website and we will get back to you right away. Once we have your details, we will send you over an email asking for photos and the area size of the area you require resin bound surfacing.
Once we receive the photos and area size, we can offer you a free quotation based on the information given. Site visits are usually unnecessary for resin bound gravel installation since we can see what work needs we need to complete simply by photos and area size.
As a nationwide company, it would be difficult to come out to site for every possible enquiry we have. However, we are more than happy to discuss our enquiry process in more detail if necessary.
Get In Touch
Simply fill in the quick contact form to give us some information about what you need. It would also be helpful if you could give a rough idea of your budget. One of our experienced team members will be able to get back to you with detailed product sheets on resin bound gravel.
